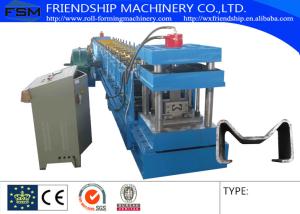

Q195 - Q235 C 6mm Thickness Purlin Roll Forming Machine
For Sigma Shape Steel Purlin
Details of roll forming main machine
- Purlin specifications: width :80-350mm,height: 40-80mm,small rib: 14-25mm
- Coil thickness:1.2-3.5mm Q195~235, zinc coils & Hot Rolled coils
- Working speed: 10-25m/min (not containing punching and cutting time )
- Forming roller: 17steps
- Leveling roller:5steps (up 2 and down 3)
- Rectifying: one step
- Feeding & guiding: 2 sets ,4 rollers

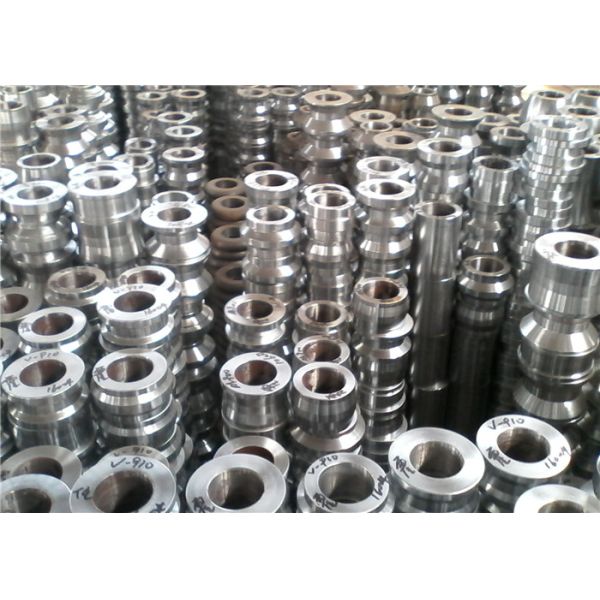

- Material of roller: GCr15, quenched
- Material of main shaft:45﹟ steel
- Main motor: 15KW
- Feeding, leveling motor power: 7.5 KW
- Hydraulic pressure: 15-20MPa
- Hydraulic power: 7.5 KW
- Two servo motor and four encoder
- Transmission: Transmission by by Chains 1.2Inch double line
- Main dimension: 11000mm x 1400mm x 1400mm (L x W x H)
- Total weight: 14000kg
Standard of hydrauic decoiler and manual decoiler
Hydraulic decoiler
- single head to put the coil hydraulic fiow over device
- coil spec:508*1300mm
- flow over range: 460-520mm
- oil cylinder:160*90mm
- drive by hydraulic brake
- capacity:5T,10T,20T
- Power of decoiler:4KW cycloid motor
Manual decoiler
- Dimensions: 1700mm*1000mm*800mm
- Width of feeding: 600mm
- Capability: 5 Ton
- Bound of expand &fight: 450mm—510mm
- Mode of expand &fight: inner expand &fight by manual
- Way of feeding: manual
PLC control system (panasonic)
- Voltage, Frequency, Phase: 415V, 50 Hz, 3Phase
- Automatic length measurement:
- Automatic quantity measurement
- Machine will automatically cut to length and stop when required quantity is achieved
- Length inaccuracy can be amended easily.
- Control panel: Button-type switch and touch screen
- Unit of length: millimeter (switched on the control panel)
- The program should be can set 5 different measure and quantity.
Details of punching and cutting
- Punching mold: Cr12 HRC 58-62
- Machine with 3 sets punching system
- Punching with hydraulic drive
- Punching in longitude wise controlled by PLC, punching at horizontal wise adjusted by manual hand wheel.
- Punch details as shown in drawing.
- Hydraulic Cutting before forming: Cut the sheet before roll forming to required length.
- Cutting motion: The main machine not stop and the continue punching and cutting.
- Material of blade: CR12with heat treatment
- Length measuring: Automatic length measuring
- Tolerance of length: 3m+/- 1.5mm
Manual out table
- Jointed by 60mm*40mm tube
- Size: 1.0m long*0.8mwide*0.6-1mhigh
- One out table with two support roller
CompositionS of machine
| NO. | Item | Unit | Qty |
| 1 | Roll forming main machine | set | 1 |
| 2 | Hdraulic/Manual Uncoiler | set | 1 |
| 3 | Control panel | set | 1 |
| 4 | Hydraulic station | set | 1 |
| 5 | Hydraulic punching | set | 1 |
| 6 | Hydraulic cutting | set | 1 |
| 7 | Manual out table | set | 2 |
we can produce the machine according to the requirement of client
