Color And Galvanized Steel G550 Roof Roll Forming Machinery
12m/min - 15m/min
Character of main structure
- Machine drive part adopt protect cover
- Machine adopt new station with chrome
- Machine has press system to produce tile panel press mould: Cr12
- Machine should be with four legs (made from metal) in 350mm
- The structure is simple and the appearance of the machine is beautiful because we adopt the shape-steel structure and process as a whole after welding. it has the ability of strong loading and stable operation when running the machine.
- All the components of machine are from brand-famous enterprise so that they ensure the machine normal function very effectively.
- We adopt the automatic length-fixed forming and cutting to guarantee the length to be precise and the finished product clear without deforming .
- It is very easy to install the equipment and suitable for producing in the factory.
- The machine has features of low noise and high efficiency.
Technical specification
| Item | Description |
| Coil width: | 1220mm |
| Effective width | 1000mm |
| Working speed: | 12-15m/min (not contain cutting) |
| Roll station | 21 stations |
| Material of roller | Cr45 steel, polished and coated with chrome |
| Material of main shaft | 45﹟forge steel |
| Diameter roller | Ф76mm solid |
| Main power | 5.5KW machine DC motor |
| Forming thickness | 0.2mm—0.6mm color steel and galvanized steel G550 |
| Control system | PLC control system Panasonic |
| Transmission | by single Chains 1.02 inch |
| Feeding and guide | surface polished and coated with chrome |
| Machine adopt new station with chrome (at the up of each station have dial) |
| Size of machine | 11000x1500x1200(mm) need 1x40GP container |
| Weight: | about 7000Kgs |
| Color of machine | Blue(according customer requirement) |
| Machine should be with four legs (made from metal) in 350mm |
| Machine adopt hydraulic cutting |
| Hydraulic Cutting after forming | Cut the sheet after roll forming to required length |
| Cutting motion | The main machine automatically stops and the cutting will take place. After the cutting, the main machine will automatically start. |
| Material of cutting blade | CR12with heat treatment |
| Length measuring | Automatic length measuring |
| Tolerance of length | 3m+/- 1.5mm |
Un-coiler
- Loading of hydraulic decoiler:7t
- Dimensions: 2000mm*1700mm*1000mm
- Width of feeding: 1300mm
- Capability: 6Ton
- Bound of expand &fight: 460mm—540mm
- Diameter of shaft: 160mm
- Motor power: 5.5KW
- Hydraulic power: 4KW
- Mode of expand &fight: inner expand &fight by hydraulic
- Speed: 0-25m/min adjustable which control by loop
Composition of machine
| NO. | NAME | UNIT | QTY |
| 1. | Roll forming main machine | SET | 1 |
| 2. | 7T hydraulic de-coiler | SET | 1 |
| 3. | Hydraulic station | SET | 1 |
| 4. | Manual out table | SET | 2 |
| 5. | Control panel | SET | 1 |
| 6. | Spare tools | BOX | 1 |
Technological process
Decoiling—feeding—guide---roll forming----cut to length—product packing manual

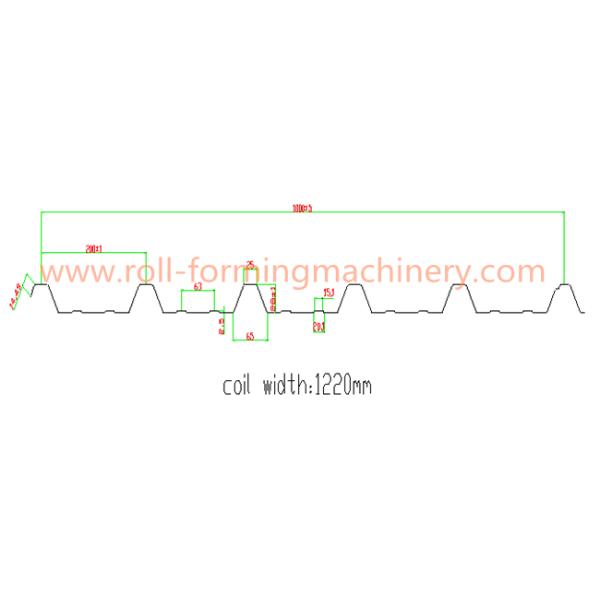

Profile Drawing:(Basis on customer’s require to design)
